Cradlepoint R500-PLTE

Compact, ruggedised Private LTE (PLTE) router for advanced connectivity.

The R500-PLTE Series endpoints provide industry-leading LTE connectivity as well as Ethernet and Wi-Fi

  • Deploy a value-driven PLTE networking solution with industry-leading features
  • Define policies through centralized cloud-based management for easy deployment at scale
  • Install the compact and ruggedized router in harsh environments where connectivity must be reliable
  • Deploy an FCC Part 96 authorized end-user device for Band 48 OnGo CBRS networks
  • Expand with custom solutions using GPIOs and NetCloud SDK, API, and NetCloud Edge Connector for Microsoft Azure IoT Central
  • Add a second cellular modem, with an Extensibility Dock, for multi-link capability

Got a project or need bulk pricing? Get in touch.

Product Specifications

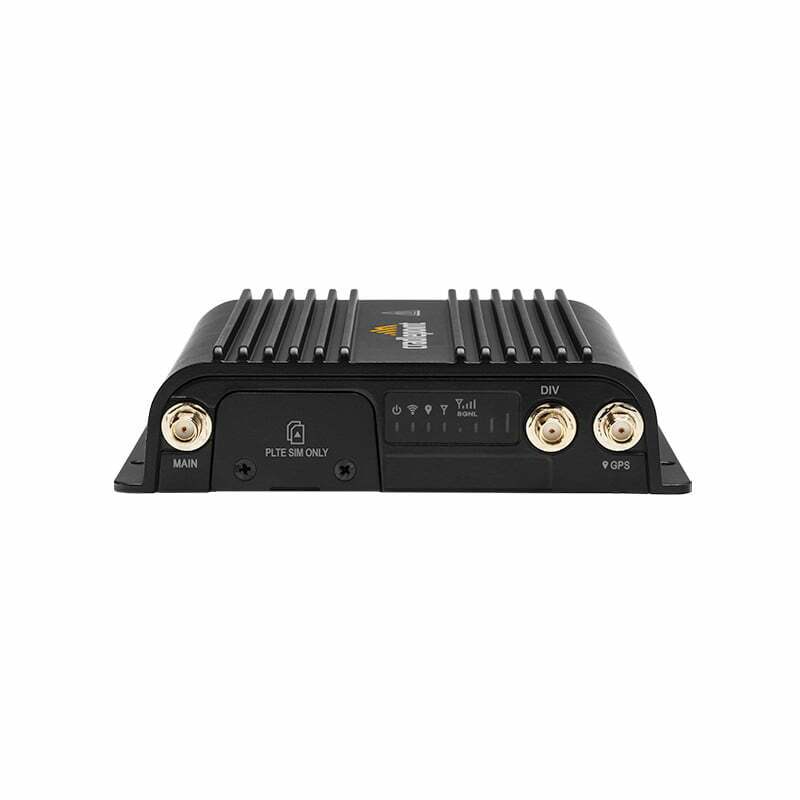

Modem Embedded Category 7 Advanced LTE modem with dual SIM slots, mini 2FF form factor and 2 x SMA cellular antenna connectors

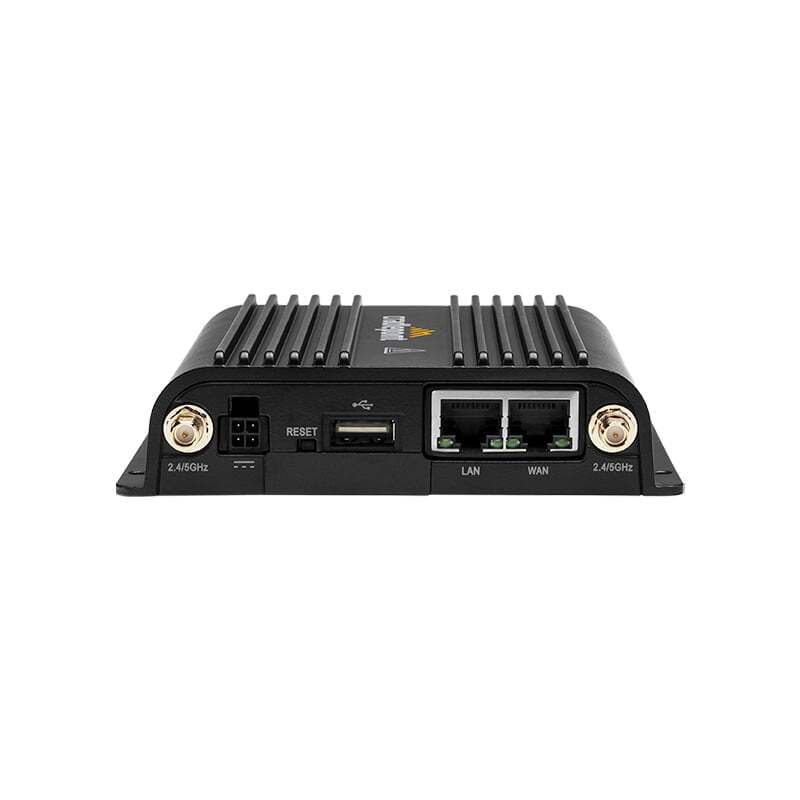

Ethernet 2 x GbE RJ45 (LAN/WAN switchable)
Wi-Fi Dual-band, concurrent operation (2.4 GHz & 5 GHz)
GNSS / GPS 1 x SMA GNSS antenna connector
Temperature Operating: -30°C to 70°C
Storage: -40°C to 85°C
Humidity Operating: 5% to 95%
Storage: 5% to 95%
Ingress Protection IP54 (dust protected and splashing water)
Dimensions (WxHxD) 118 x 113.5 x 29.3 mm
Weight 400g
Max Router Throughput 850 Mbps
IPsec VPN Throughput 30 Mbps

Product Certifications

Safety UL/cUL
CB Scheme
EN 60950-1
EN 62368-1
Wi-Fi Wi-Fi Alliance — 802.11a/b/g/n/ac Wave 2 certified
Shock/Vibration/Humidity MIL-STD 810G
SAE J1455
