Gamber Johnson 13.3” Capacitive Touch Screen
Utilise Gamber Johnson’s 13.3" Capacitive Touch Screen as the focal point of your DeX solution.
- 13.3” touch screen, high resolution 1920 x 1080, Brightness: 50-1000 nits (adjustable)
- Ambient light sensor – automatically adjusts screen brightness
- 5-Point multi-touch technology – higher accuracy and greater support for smartphone gestures
- Blackout button allows the screen to be blacked out for privacy or to minimise driver distraction without having to reboot the touchscreen
- Programmable emergency button – sends an instant notification in case of an emergency
- Sleep mode to reduce power consumption when not in use
- VESA 75mm mounting holes
Got a project or need bulk pricing? Get in touch.
Product Specifications
| Dimensions (HxWxD) | 252.5 x 137.5 x 39.9 mm |
| Weight | 3.04kg |
| Resolution | 1920 x 1080 |
| Contrast Ratio | 900:1 |
| Aspect Ratio | 16:09 |
| Glass | Anti-Glare, Anti-Reflective |
| Backlit | LED |
| Brightness | 1000 nits |
| Display Colour | 16.7M |
| Viewing Angle | 85°/85°/85°/85° (R/L/U/D) CF>10 |
| Active Area | 293.76 x 165.24 mm |
| Power | 11-16 V @ 5A (12V Nominal) |
| OSD Buttons | Emergency, Source,Menu, Home, Escape, Blackout, Brightness +/-, Volume +/-, Power |

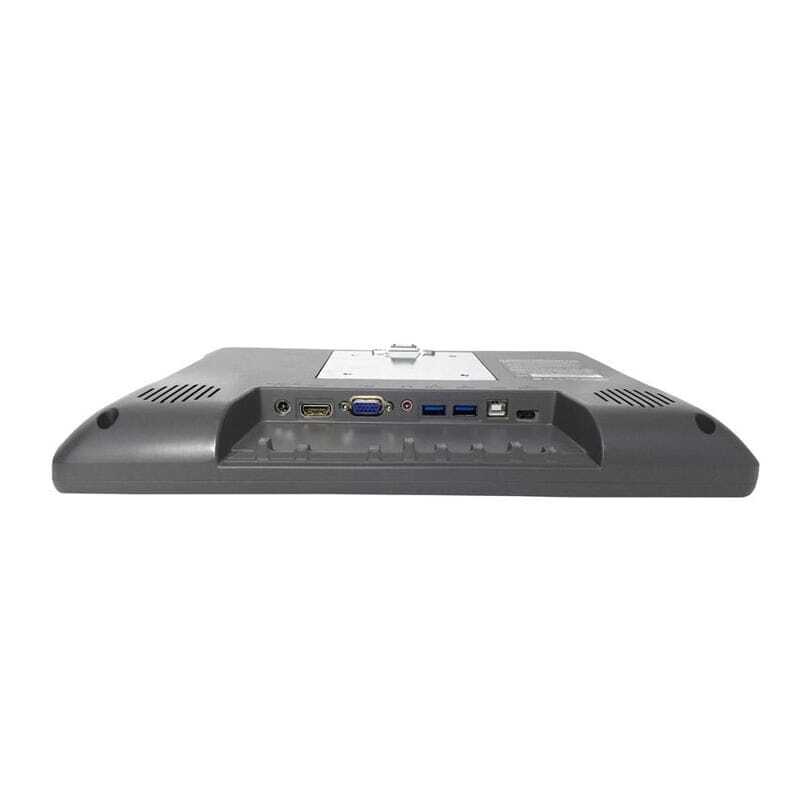

| I/O | (1) DC Power in, (1) Audio 3.5mm, (1) HDMI, (1) VGA, (1) USB type B, (2) USB type A, (1) USB type C |
| Platforms Supported | Windows (XP or Above), Android, Linux, Mac OS / iOS |
| Ingress Protection | Front Panel (IP65) |
| Response Time | 40 ms (max) |
| Temperature Range | Operating: -20°C to +70°C; Storage: -30°C to +80°C |
| Speakers | (2) 5W |
| Mounting Capability | VESA 75mm |
Product Certifications
| Rugged | MIL-STD 810G shock and vibration specifications MIL-STD 810G Temperature and Humidity (operational and storage) SAE J1455 30mph crash testing |
Compliance
| Compliance | FCC, CE, RCM, RoHS, REACH |
Warranty
| Warranty | 1 Year Limited Warranty |
