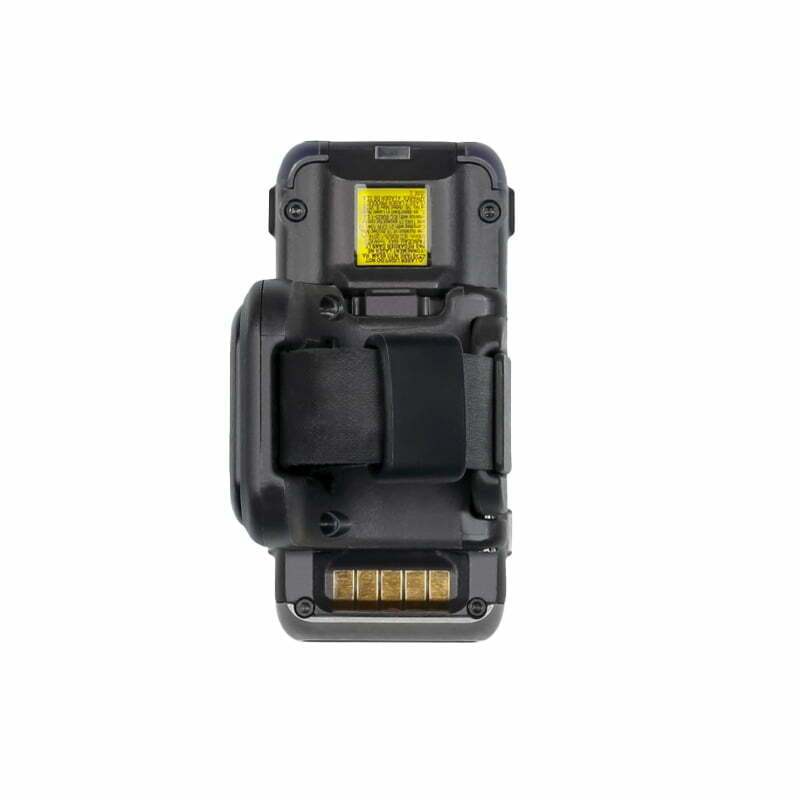

Honeywell 8675i

Small, lightweight and ergonomic with premium scanning performance including FlexRange™ option enables wearable efficiency.

The 8675i offers always-at-hand rugged wearable scanning to improve workflow productivity. Premium scanning performance ensures quick work of even damaged or low-quality barcodes.

  • Lightweight
  • Ergonomic form factors
  • Accurate barcode targeting even in full daylight
  • Easily removable smart battery

Got a project or need bulk pricing? Get in touch.

Product Specifications

Dimensions 65.2 x 30.3 x 15.2 mm
Weight Triggered ring with battery: 63g (8675i-SR) / 66g (8675i-FR)
Scanner module without wearable accessory or battery: 50g (8675i-SR) / 53g (8675i-FR)
Scan Performance Scan Pattern: Omni-directional area imager
Symbol Contrast: 20% minimum reflectance
Pitch: +/-60°
Skew: +/-60°
Bluetooth™ 2.4 GHz to 2.5GHz (ISM Band (Adaptive Frequency Hopping Bluetooth v5.1 Class 1; 100m (330ft) line of sight; BLE
NFC communications for simple tap-to-pair functionality.
Battery 3.85V, 570mAh
Battery Expected Charge Time 3.5 Hours
Battery Weight 19g
Number of scans 12,000 over 10 hour shift
Operating Temperature 8675i-FR: -20°C to 50°C
8675i-SR: -20°C to 50°C
Storage Temperature -20°C to 60°C
Humidity 0% to 95% relative humidity (non-condensing)

Product Certifications

Drop 1.8m (6ft) Mil-Std-810 Drop Test at operating temperature
50x 1.5m (5ft) to concrete at operating temperature
Tumble 2,000 1/2 m (1.6ft) tumbles per IEC 60068-2-32 specification
Trigger Rated for 5MM activation cycles
Electrostatic Discharge (ESD) ±8kV direct, ±12kV air
Environmental Sealing Independently certified to meet IP65 standards for moisture and particle intrusion


Factory Warranty Two-Year
Battery One-Year
