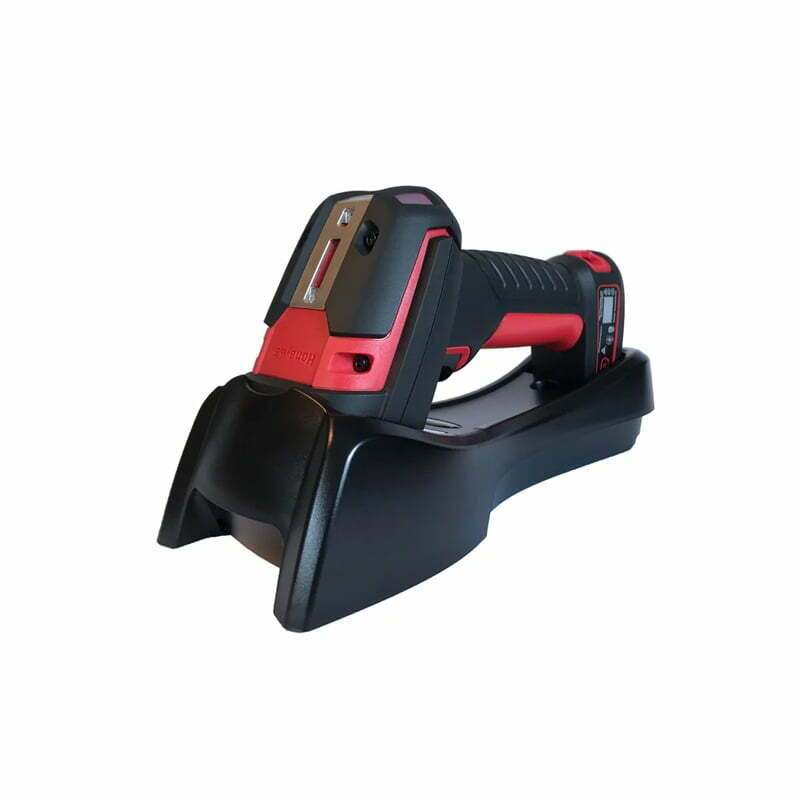

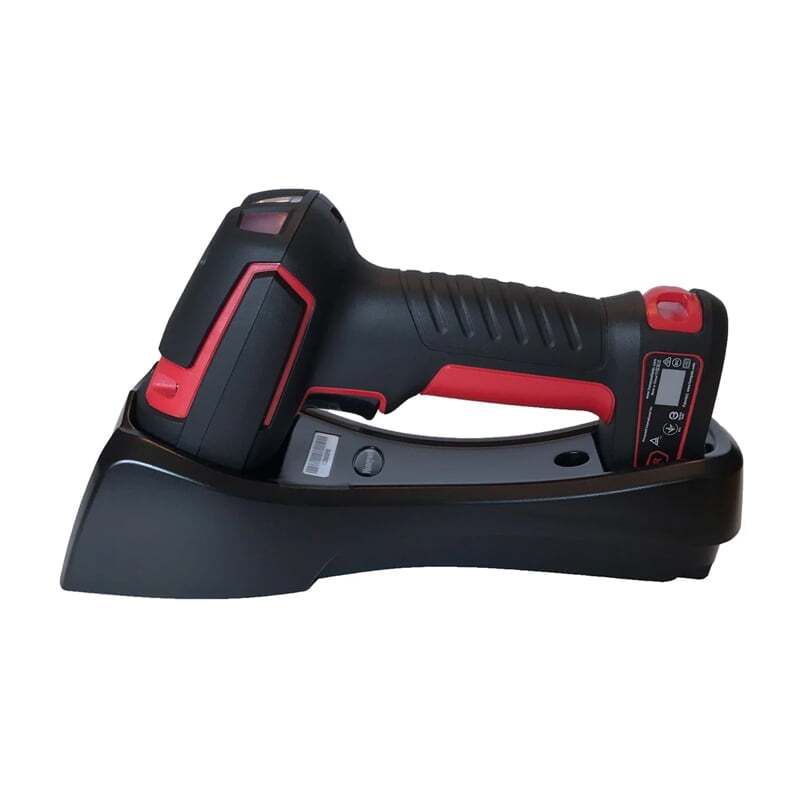

Honeywell Granit XP 1991iXLR
Cordless, ultra-rugged, long-range industrial handheld scanner
The Granit™ XP XLR offers an ideal blend of no-sacrifice near-field scanning plus the ultra-long range to read UPCs at 2 meters, and 2.5 millimeter rack labels at 24 meters.
- Up to 50,000 scans per charge
- 3m drop test certified
- 7,000 1 m tumble specification
Got a project or need bulk pricing? Get in touch.
Product Specifications
| Dimensions | 192 x 76 x 100 mm |
| Weight | 405g (cordless) |
| Scan Performance | Scan Pattern: Area Imager Near: 1280 x 800 pixel array Global Shutter Far: 1920 x 1080 pixel array Rolling Shutter Roll, Pitch, Skew: -360°, 45°, 65° |
| Motion Tolerance | Up to 4500 mm/s (177 in/s) |
| Print Contrast | 20% minimum reflectance difference |
| Wireless | 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2; Class 1: 100 m (330 ft) line of sight |
| Battery | 2450mAh Li-ion minimum |
| Battery Expected Operation Time | 14 hours (1 scan per second) |
| Number of scans | Up to 50,000 scans per charge |
| Input Voltage | 4.0 VDC to 5.5 VDC |
| Operating Power | 5 W 1000 mA @ 5 VDC |
| Standby Power | 0.6 W |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | Up to 95% relative humidity (non-condensing) |
Product Certifications
| Drop (Multiple) | 1.8 m (6 ft.): 50 dops from -20°C to 55°C (-4°F to 131°F), uncontrolled RH 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH |
| Tumble | 7000 1m (3.3 ft) tumbles |
Warranty
| Scanner | Three-year factory warranty |
| Battery Pack | One-year factory warranty |
