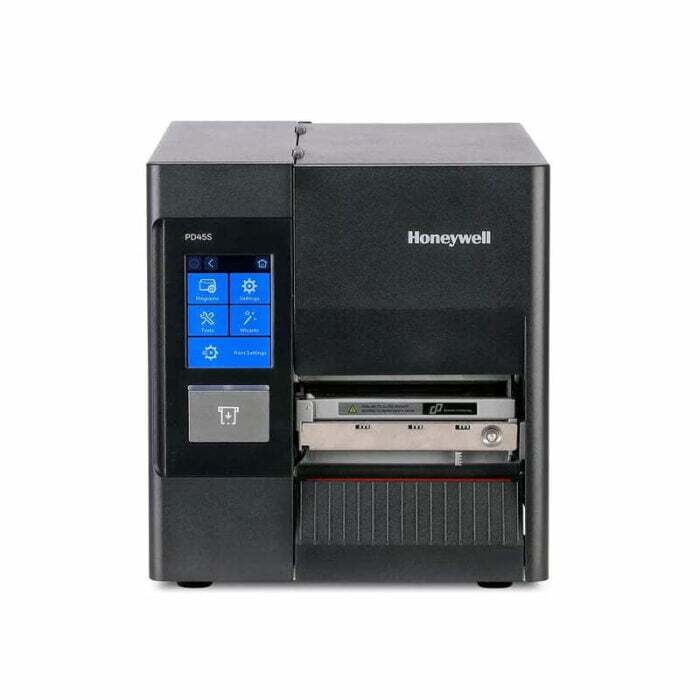

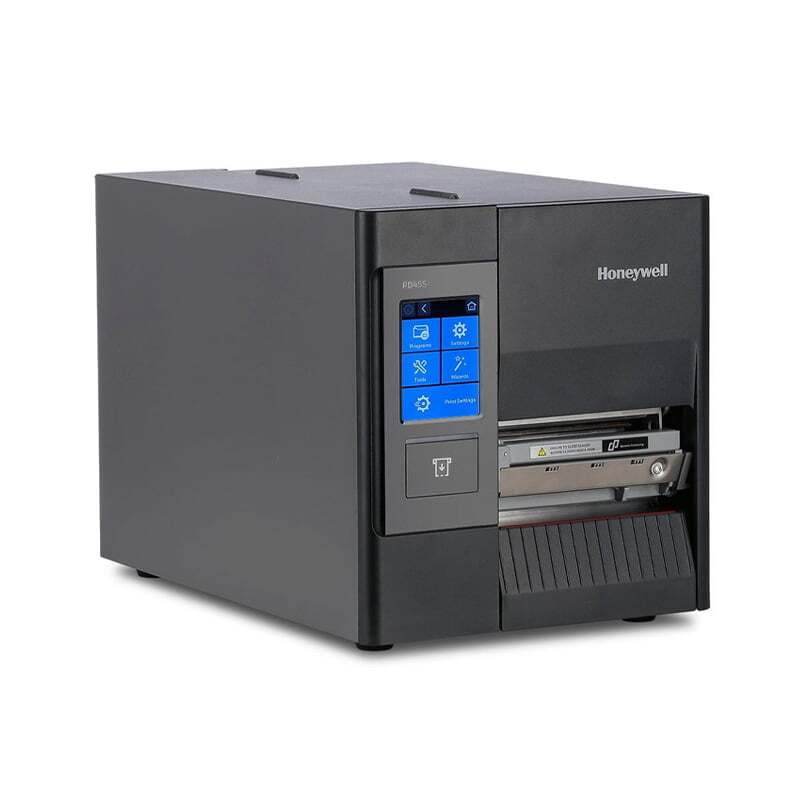

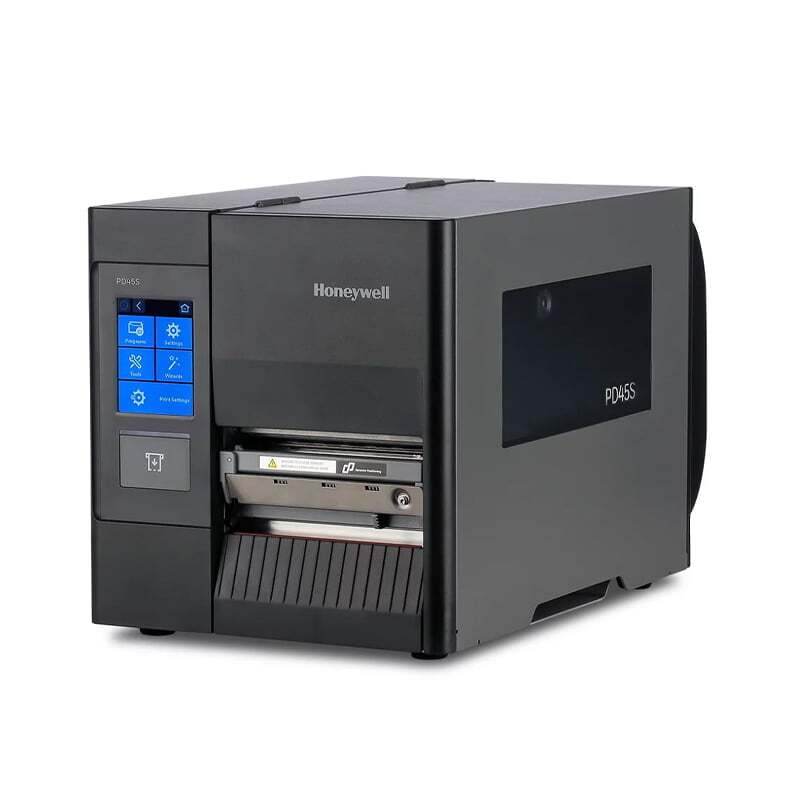

Honeywell PD45

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure for maximum sturdiness and durability.

The PD45 is available with smart printing capability that allows users to configure and finetune settings without the need for a host computer by running apps right inside the printer – minimising the need to connect to a PC.

  • Support for multiple print languages
  • Industrial print head supports both direct thermal and thermal transfer printing modes
  • Side opening for convenient ribbon and paper loading

Got a project or need bulk pricing? Get in touch.

Product Specifications

Dimensions 438 x 270 x 249 mm
Weight 9.25 kg
LCD 2.36” keyed LCD
Print Resolution 203 dpi: 8 dots/mm
300 dpi: 11.8 dots/mm
Print Speed 203 dpi: 50 - 200mm/s (2-8ips)
300 dpi: 50 - 100mm/s (2-4ips)
Maximum Width 203 dpi: 108 mm (4.25 inches)
300 dpi: 105.7 mm (4.16 inches)
Maximum Continuous Print Length 203 dpi: 4.8 m (15.75 inches)
300 dpi: 2.2 m (7.22 inches)
Ribbon Specification Type: Wax base, mixed base and resin base
Ribbon Supporting: Inner carbon or outer carbon
Max. Roll Diameter: 80 mm (3.15 inches), about 450 m (1,476 feet)
Min. / Max. Width (ribbon and roll core): 51 / 110 mm (2.0 / 4.33 inches)
Media Specification Min. / Max. Width (label and liner): 20 / 114 mm (0.79 / 4.5 in)
Thickness (label and liner): 3 mil to 8.82 mil (0.076mm to 0.224mm)
Configuration: External roll paper or folding paper
Maximum diameter of label roll: 203.2 mm (8.0 inches)
Label roll core: 76 mm (3.0 inches)/25.4mm (1.0 inches)
Barcode Symbologies All major 1D and 2D symbologies are supported
Fonts Monotype font engine; non-Latin fonts can be supported through WTLE, and customers can also download (Truetype) fonts by themselves
Graphics Supports PCX, PNG, GIF and BMP file formats. Other formats can be supported by Label Generation Tools.
Operating Temperature 5°C to 40°C
Storage Temperature -20°C to 70°C
Humidity Operating: 20% to 85% non-condensing
