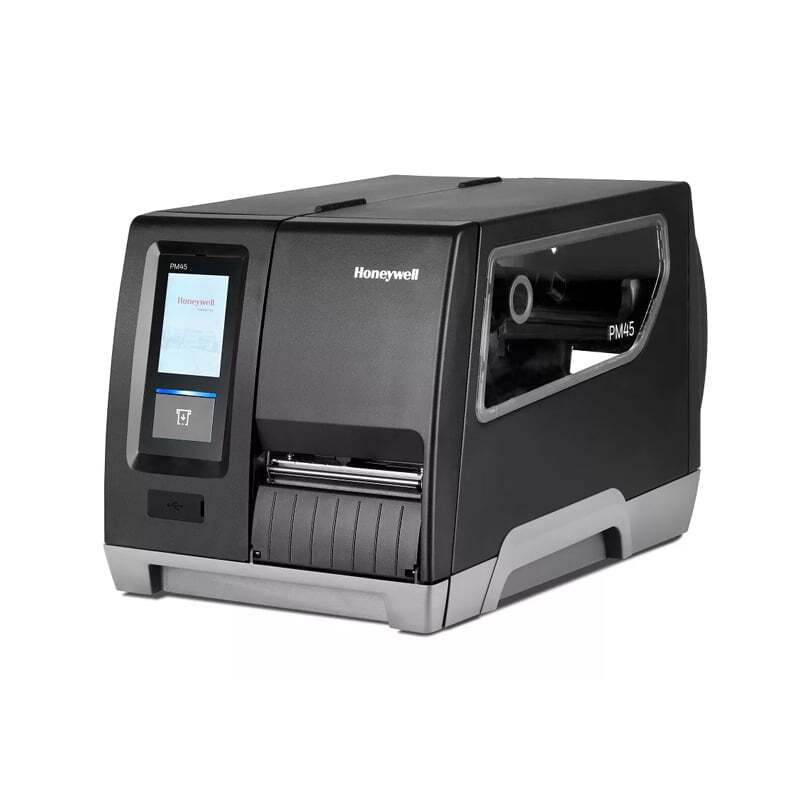

Honeywell PM45
High quality label printing in harsh industrial environments.
The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence for high operating efficiency.
- Print registration of up to ±0.5 mm
- High-precision and high-volume printing
- Remote configuration and diagnostics functionalities
- Connect and configure the printers from your preferred Android™ or iOS device
Got a project or need bulk pricing? Get in touch.
Product Specifications
| Dimensions | 483 x 295 x 284 mm |
| Weight | 12.1 kg |
| Print Specifications (Max. Width) | At 203 dpi: 108 mm At 300 dpi: 105.7 mm (4.17 in) At 406 dpi: 104 mm (4.09 in) At 600 dpi: 105.6 mm (4.16 in) |
| Print Speed | At 203 dpi: 50 mm to 350 mm/s (2 ips to 14 ips) At 300 dpi: 50 mm to 300 mm/s (2 ips to 12 ips) At 406 dpi: 50 mm to 250 mm/s (2 ips to 10 ips) At 600 dpi: 50 to 150 mm/s (2 ips to 6 ips) |
| Print Resolution | At 203 dpi: 8 dots/mm At 300 dpi: 11.8 dots/mm At 406 dpi: 16 dots/mm At 600 dpi: 23.6 dots/mm |
| Media Specification | Type: Labels, tags and linered media Min. / Max. Width: 19 mm / 114 mm Thickness: 2.4 mil to 10.4 mil Configuration: Roll-fed or fan-fold Media Sensing: Gap, notch, black mark, continous, media low, (rotary hanger option), media end |
Ribbon Specification | Type: Wax, mid-range and resin Min. / Max. Width: 21.6 mm / 110 mm Max. Diameter: 80 mm (3.15 in), capacity of 450 m (1,476 ft) |
| Barcode Symbologies | All major 1D and 2D symbologies are supported |
| Fonts | Monotype font engine (Non-Latin fonts available through WTLE) |
| Graphics | Supports PCX, PNG, GIF and BMP file formats |
| WLAN | IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO, 802.11d/e/h/i/k/r |
| Bluetooth© | V5.0 Bluetooth and BLE supported |
| Security | OPEN, WEP, WPA/WPA2 |
| Supported EAP | TLS, PEAP, TTLS, PWD, LEAP, FAST |
| AC Voltage | 100V AC to 240V AC, 50 Hz to 60 Hz |
| Power Consumption | Standby 9.6W; Peak 270W (24V), Peak 145W (33V) |
| Memory | 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22) |
| Ambient Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | Operating: 20% to 85% non-condensing Storage: 5% to 90% non-condensing |
