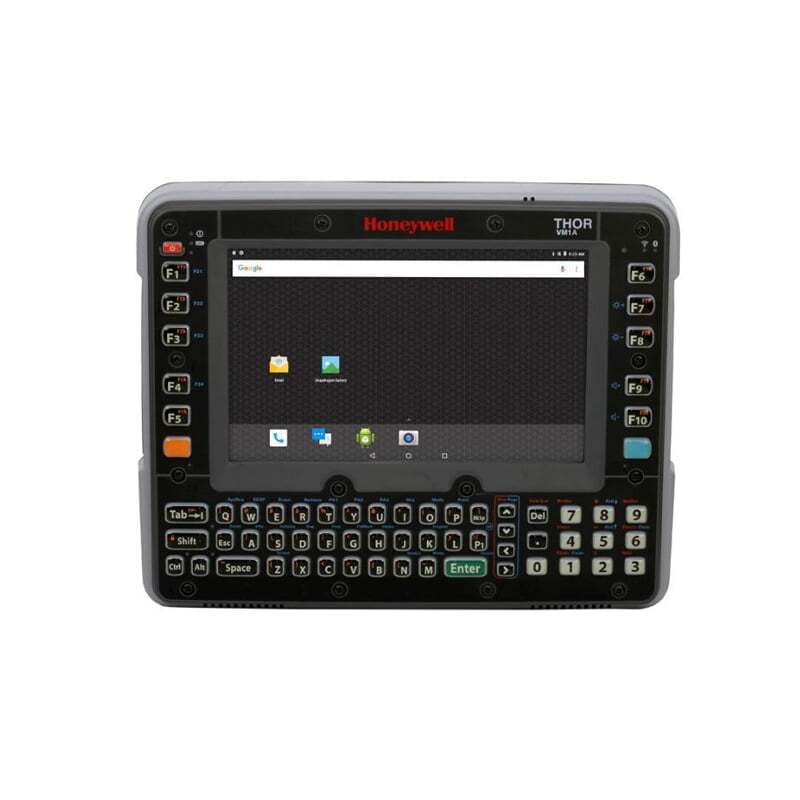

Honeywell Thor VM1A

Compact, ergonomic and powerful, the Thor VM1A has numerous breakthrough features designed to maximise productivity, minimise visual obstructions and reduce or eliminate downtime.

Built on the future-proof Mobility Edge platform, the Android-based Thor VM1A vehicle-mounted computer is built tough to handle harsh warehouses, ports and intermodal and manufacturing environments.

  • Vehicle-Mounted Computer
  • Smart Dock feature enables mounting and removal in seconds without affecting the cabling
  • Field-replaceable front panel reduces maintenance costs

Got a project or need bulk pricing? Get in touch.

Product Specifications

Mobile Computing Platform 2.2 GHz Qualcomm Snapdragon™ 660 octa-core
Operating System Android 8
Storage 32GB Flash
LCD 8" WXGA LED backlit display, standard 400 NIT indoor display, optional 900 NIT outdoor display, optional screen blanking
Resolution 1280 x 768
Dimensions (WxHxD) Computer: 268 x 214 x 43 mm
Dock: 180 x 155 x 64 mm
Weight Computer: 2.1kg
Dock: 1.2kg
Bluetooth™ Class 1.5 v5.0
Wireless LAN IEEE 802.11 a/b/g/n/ac; Wi-Fi Alliance Certified, 2x2 MU-MIMO
Touch Panel Resistive: Industrial touch panel with support for finger touch and standard stylus; supports swipe
Capacitive: PCAP multi-touch touch panel for finger and conductive stylus; hardened glass overlay. Automatic detection and configuration utilising mutual and self-capacitance modes for water rejection and use with many offthe-shelf gloves
Sensors Ambient light sensor, accelerometer, gyroscope, magnetometer
Audio Audio for headset, integrated stereo speakers with adjustable volume control, integrated microphone
Input / Output Enhanced Dock: 2x powered RS232 COM ports, 1x USB 2.0 powered host port Type A, 3 additional USB 2.0 powered host ports, 1x USB 2.0 Client port, 1x Ethernet RJ45 port, 1x CAN-bus port, 1x headset port, DC power input and ignition control input
Standard Dock: 2x powered RS-232 COM ports, 1x USB 2.0 powered host port, 1x USB 2.0 Client port, 1x CAN-bus port, 1x headset port, DC power input and ignition control input
Computer: 2x SMA connectors for external WLAN antennas
Keypad Full 64-key QWERTY keyboard with number pad and 10/20 function keys; all keys, except modifiers, are mappable; all keys backlit; key labels support ANSI and 5250 emulation
Battery Li-Ion, 3.6V, 7000 mAh
Temperature Operating: -20°C to 50°C
Storage: -30°C to 50°C
Humidity 5% to 95% (non-condensing)
Cold Storage Optional industrial resistive touchscreen with integrated defroster
Power Supply & UPS 10 to 60V DC isolated, optional external converters for AC (90 to 240V AC) and extended range DC (60 to 150V DC); integrated Li-Ion maintenance UPS with 30-min life at 20°C, charging range 0°C to +35°C

Product Certifications

Shock SAE-J1455
Environmental Independently certified to meet IP66 standard for moisture and particle intrusion
Electrostatic Discharge (ESD) EN55024:1998 (enhanced ESD to 8kV direct and 15kV air)
Vibration MIL-STD-810F, composite wheeled vehicles


Factory Warranty One-year
