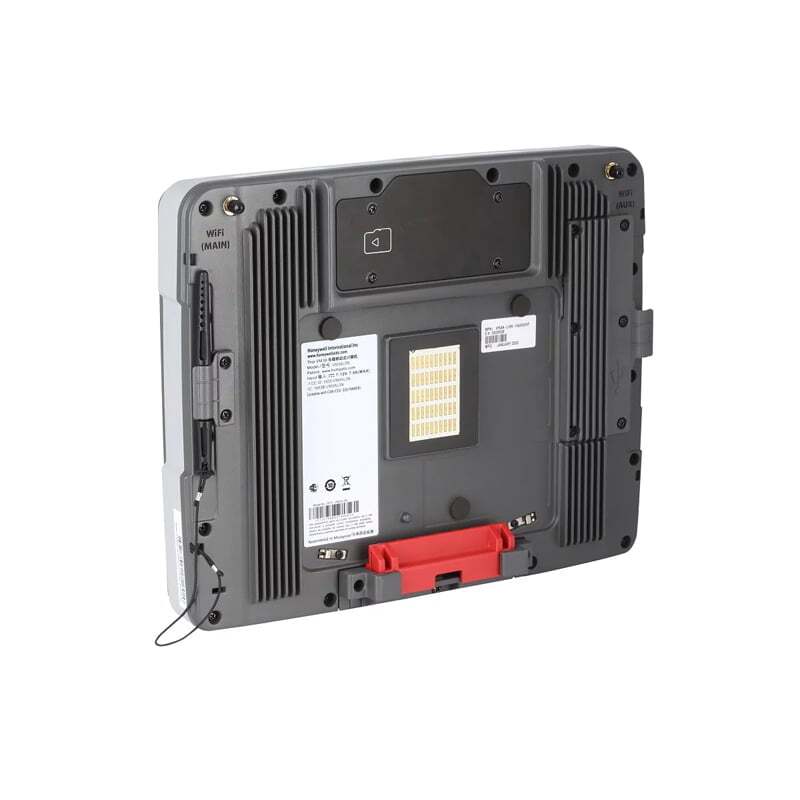

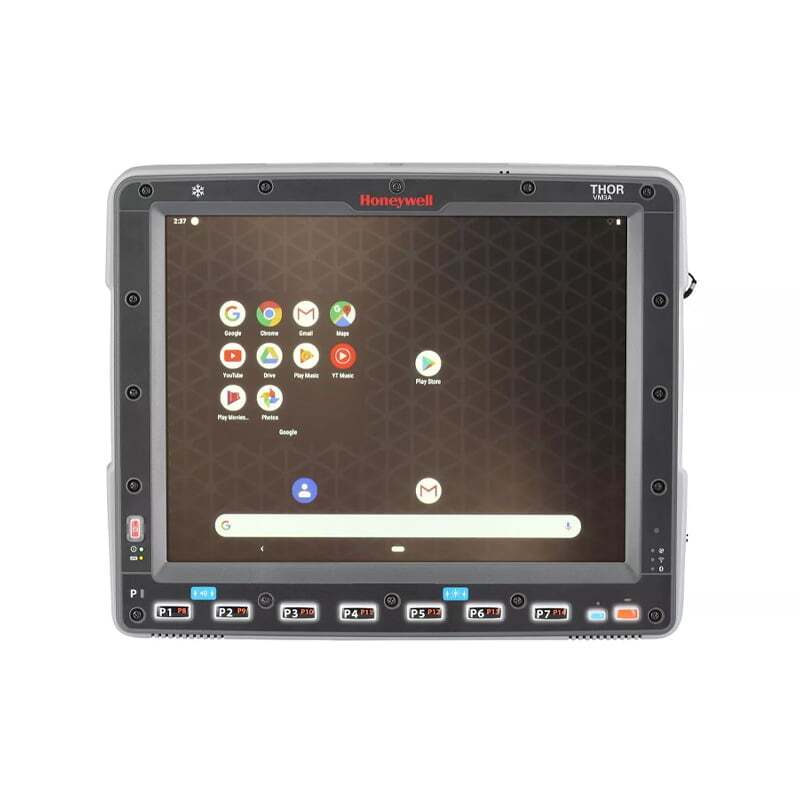

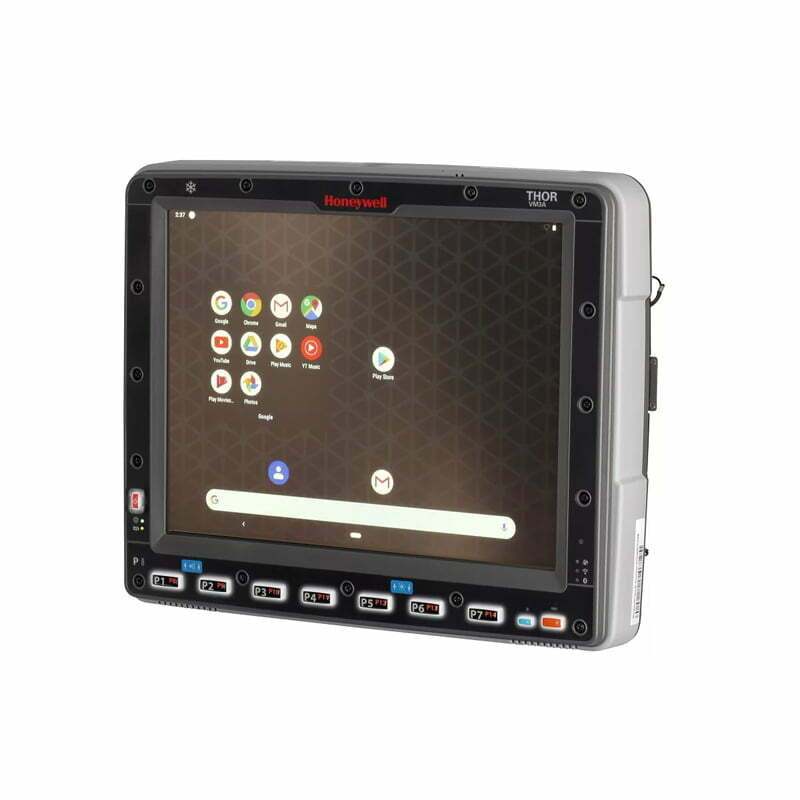

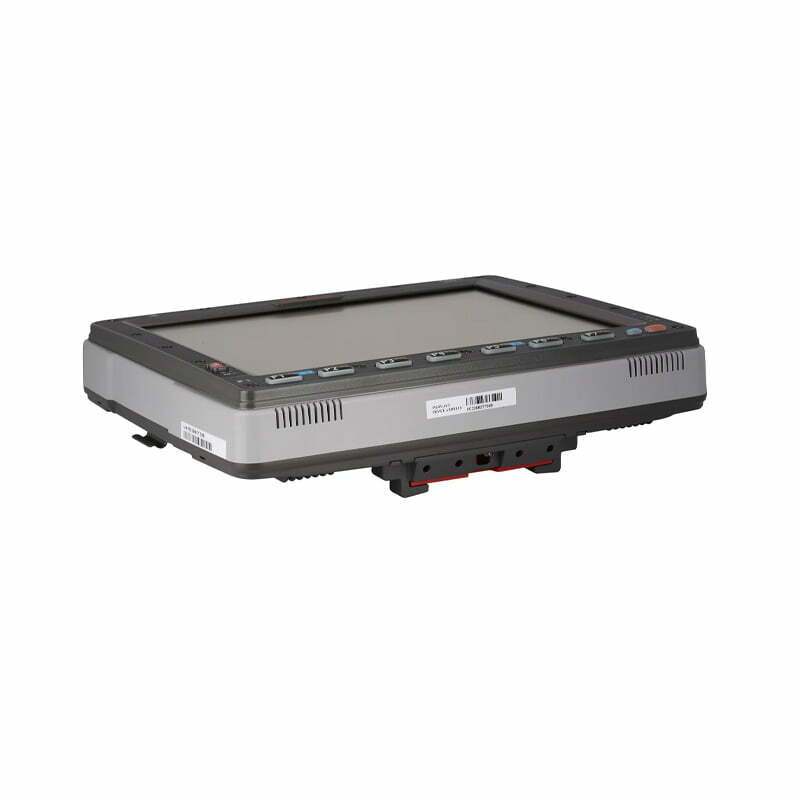

Honeywell Thor VM3A

The industry’s most capable full-sized vehicle mounted mobile computer, delivering unmatched operational efficiences.

The Thor VM3A vehicle-mounted computer offers breakthrough features designed to eliminate downtime and maximize capital investment.

  • Vehicle-Mounted Computer
  • Smart Dock feature enables mounting and removal in seconds without affecting the cabling
  • Field-replaceable front panel reduces maintenance costs

Got a project or need bulk pricing? Get in touch.

Product Specifications

Mobile Computing Platform 2.2 GHz Qualcomm Snapdragon™ 660 octa-core
Operating System Android 11
Storage 32GB Flash
LCD Indoor: 12.1" XGA LED backlit display,400 NIT, optional screen blanking
Outdoor: 12.1" XGA LED backlit display, 900 NIT, optional screen blanking
Resolution 1280 x 768
Dimensions (WxHxD) Computer: 318 x 260 x 62mm
Dock: 180 x 155 x 54mm
Assembled Depth: 104mm
Weight Computer: 3.0kg
STandard Dock: 1.5kg
Bluetooth™ Class 1.5 v5.0
Wireless LAN 802.11 a/b/g/n/ac/d/e/h/i/k/r/w.802.11mc
Touch Panel Industrial touch panel with resistive touch and support for finger touch and standard stylus
Sensors Ambient light sensor, accelerometer, gyroscope, magnetometer
Audio Audio for headset, integrated stereo speakers with adjustable volume control, integrated microphone
Input / Output Standard Dock: 2x powered RS-232 COM ports, 1x USB 2.0 powered host port, 1x USB 2.0 Client port, 1x headset port, DC power input and ignition control input
Keypad Seven programmable multi-function keys
Temperature Operating: -20°C to 50°C
Storage: -30°C to 50°C
Humidity 5% to 95% (non-condensing)
Cold Storage Optional industrial resistive touchscreen with integrated defroster
Power Supply & UPS 10 to 60V DC isolated, optional external converters for AC (90–240V AC) and extended range DC (60–150V DC); integrated Li-Ion maintenance UPS with 30-min life at 0°C

Product Certifications

Shock SAE-J1455 (MIL-STD-810g-4.6.6 Procedure V-Crash Hazard Shock Test)
Environmental Independently certified to meet IP66 standard for moisture and particle intrusion
Electrostatic Discharge (ESD) EN 55024:2010 (enhanced ESD to 8kV direct and 15 kV air)
Vibration Proprietary Random Profile exceeding MIL-STD-810F, composite wheeled vehicles


Factory Warranty One-year
